What is CNC Machining and How Does It Work？

 How Does CNC Machining Work?

The CNC machining process transforms digital designs into physical parts through a series of automated steps, ensuring precision and efficiency in CNC manufacturing. They follow programmed instructions, typically G-code, to control tools and workpieces with minimal human intervention.

Steps in the CNC Machining Process

1. CAD Design: Engineers create a 3D model using software like SolidWorks or AutoCAD, defining the part’s geometry, dimensions, and tolerances.
2. CAM Programming: The CAD model is imported into CAM software (e.g., Fusion 360, Mastercam), which generates G-code. G-code specifies tool paths, speeds, and operations.
3. Machine Setup: Operators select materials (e.g., aluminum, PEEK), mount the workpiece in fixtures or vices, install cutting tools (e.g., end mills), and calibrate the machine to ensure accuracy in CNC machining.
4. Machining: The CNC machine executes the G-code, performing operations like cutting, drilling, milling, or turning. Multi-axis machines (e.g., 5-axis mills) enable complex geometries in a single setup.
5. Quality Control: Finished parts are inspected using tools like coordinate measuring machines (CMM) or calipers, verifying tolerances (e.g., ±0.01 mm) to meet specifications.

Key Terminologies in CNC Machining

Computer-Aided Design (CAD): CAD refers to software tools that create detailed 2D or 3D models of parts to be manufactured. Complex components are often divided into smaller sections, each modeled individually using CAD. Popular CAD programs include AutoCAD and FreeCAD, with FreeCAD being a free, open-source option.

Computer-Aided Manufacturing (CAM): CAM software translates CAD models into machine-readable instructions, generating the programs that CNC machines follow to produce parts. Many CNC machines come bundled with CAM software to streamline production.

Distributed Numerical Control (DNC): DNC is a system where multiple CNC machines are connected to a central computer or server. This is particularly useful when individual machine memory is limited or when synchronized operation of several machines is needed to boost productivity.

Manufacturing Data Collection (MDC): MDC systems gather real-time data from machines and operators during production.

G-code: G-code is the primary programming language used to control CNC machines. It consists of commands that direct the machine’s movements along the X, Y, and Z axes, specifying tool paths and operations. Each line of code is numbered (N), and specific codes adjust machine functions like spindle speed or tool positioning.

M-code: M-codes handle auxiliary machine functions that are not related to cutting, such as starting or stopping the spindle, controlling coolant flow, or managing program execution. They ensure the machine operates smoothly beyond just the tool movements.

Spindle Speed: Tool rotation speed, adjusted for materials like steel or nylon.

Feed Rate: Tool movement speed, balancing precision and efficiency.

Toolpath: The programmed route for cutting.

Types of CNC Machines

CNC machines come in various types, each suited for different machining tasks and complexity levels.

CNC Milling Machines

Mills use rotating tools to remove material from a stationary workpiece. They are versatile, handling flat surfaces, slots, and complex contours.

• 3-Axis Mills: Move along X, Y, Z axes for basic parts (e.g., brackets, panels). Ideal for simple geometries in CNC machining.
• 4-Axis Mills: Add rotation (A-axis) for cylindrical features (e.g., camshafts), reducing setups.
• 5-Axis Mills: Enable multi-angle cutting (X, Y, Z, A, B axes) for intricate parts like turbine blades, showcasing what CNC machine can do in aerospace.

CNC Lathes

Lathes rotate the workpiece against a stationary tool, producing cylindrical parts like shafts or bushings. Typically 2–3-axis, modern lathes include live tooling for milling, enhancing custom CNC machining versatility. They excel in CNC manufacturing for automotive and medical components.

CNC Routers

Routers use high-speed spindles for softer materials (e.g., wood, plastics, aluminum). Common in signage, prototyping, and furniture, they offer large work areas but lower precision (±0.1 mm) compared to mills in CNC machining.

CNC Plasma Cutters

Plasma cutters use a plasma torch to cut metal sheets (e.g., steel, stainless steel) for structural components. They are fast and cost-effective for 2D profiles in CNC manufacturing.

CNC EDM (Electrical Discharge Machining)

EDM uses electrical sparks to erode hard metals (e.g., tool steel) for molds or dies. It achieves tolerances of ±0.002 mm, ideal for precision CNC machining in tooling.

CNC Laser Cutters

Laser cutters use focused beams for high-precision cutting of thin materials (e.g., acrylic, titanium). They excel in CNC manufacturing for intricate designs like electronic enclosures.

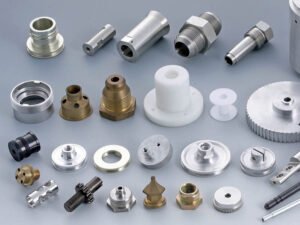

CNC Machining Materials and Surface Finishes

The versatility of CNC machining lies in its ability to process a wide range of materials and apply surface finishes, tailoring parts for performance and aesthetics in CNC manufacturing.

Here’s a brief list of common CNC materials:

Metal: Aluminium，Stainless Steel, Titanium, Brass, Copper, etc.

Plastics: ABS, Nylon, PEEK, POM (Acetal), etc.

Composites: Carbon Fiber, Fiberglass, Ceramics, wood, etc.

Here’s a brief list of common CNC machining surface finish:

• Bead Blasting:
• Anodizing
• Powder Coating
• Vapor Polishing
• Electropolishing
• Passivation
• Electroplating
• Electroless Nickel Plating
• Painting
• Black Oxide Coating
• As-Machined Finish

Advantages of CNC Machining

CNC machining offers numerous benefits, making it a preferred method in CNC manufacturing.

1. High Precision and Accuracy

CNC machines follow programmed instructions with extreme accuracy, producing parts with very tight tolerances (as tight as ±0.005 mm) that are difficult to achieve manually.

Learn more: Standard Machining Tolerances

2. Consistency and Repeatability

Once programmed, CNC machines produce identical parts repeatedly without variation, eliminating human errors and ensuring uniform quality across large production runs.

3. Scalability

Supports prototyping (1–10 units) to high-volume runs (10,000+ units), versatile for custom CNC machining.

4. Automation and Reduced Labor Costs

Because CNC machines run autonomously after programming, fewer operators are needed. Minimizes human error, reducing labor costs by up to 30% compared to manual machining in CNC manufacturing.

5. Versatility and Flexibility

CNC machines can be quickly reprogrammed to manufacture different parts with diverse materials and geometries, from simple brackets to complex 5-axis parts.

6. Production Speed

Fast cycle times (e.g., 1–2 hours for a steel shaft) with multi-axis machines, accelerating production timelines.

7. Design Freedom

Enables intricate features (e.g., undercuts, thin walls) via advanced CAM programming.

8. Cost-Effectiveness and Waste Reduction

CNC machining reduces material waste due to precise cutting and optimized tool paths. The high accuracy also minimizes defective parts, lowering overall production costs.

Limitations and Design Requirements in CNC Machining

CNC machining is highly precise, but it does have its limitations. For example, internal features can be difficult to reach, especially if there are undercuts. Tool access becomes a challenge, and the maximum depth for cuts is limited. In some cases, the part may be too complex for even a standard 5-axis machine.

Another common issue is part deformation. During machining, heat and cutting forces can cause the material to expand or vibrate, leading to shape changes or tool chatter. This is especially true for thin walls or long, narrow cavities.

Deep cavities are also harder to machine. The deeper the cut, the more likely the tool will deflect or break. Tolerances become harder to control, and in some situations, the part may need to be repositioned manually, which increases setup time.

Ultimately, part geometry affects how it’s held and how many setups are required. While automation helps, it doesn’t remove all the challenges of complex designs.

To make your part more suitable for CNC machining, keep in mind:

• Hole depth: Avoid very deep holes unless necessary.
• Wall thickness: Thin walls may flex or break.
• Inside radius: Sharp corners are hard to achieve; rounded internal corners are preferred.
• Cutting depth: Deeper cuts are harder to control.
• Corner shapes: Since tools are round, sharp inside corners require special processes and cost more.

CNC Machining Applications

CNC machining serves a wide range of industries. Below is a detailed table and narrative showcasing how does CNC machining work across applications, from prototyping to production.
