Silver streaks in the injection are one of the most common and frustrating defects in injection molding. These defects not only detract from aesthetics but can also signal deeper issues that undermine part performance.
What Are Silver Streaks in Injection Molding?

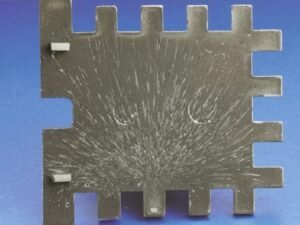

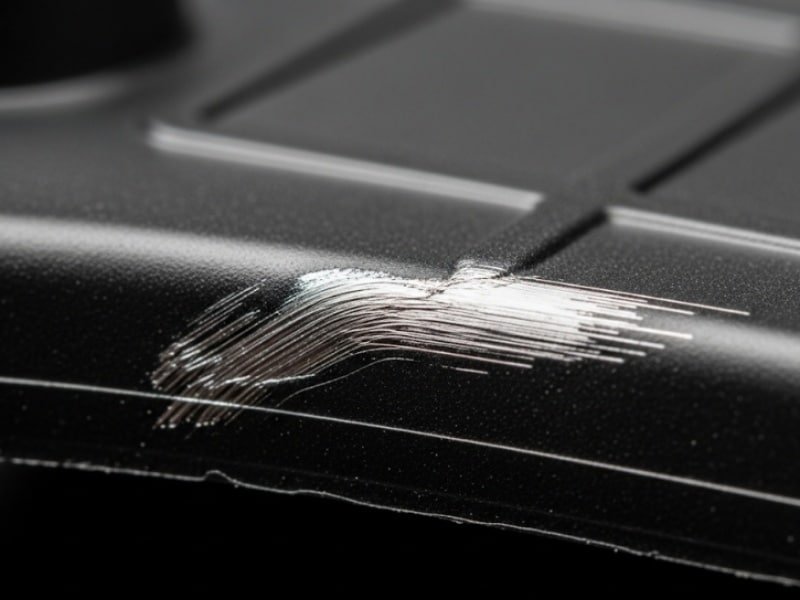

Silver streaks in injection molding are cosmetic surface defects often appearing as glossy, white, or silvery lines on the surface of plastic parts, often resembling water wave patterns, arrow-shaped streaks pointing toward the gate, or burst blisters. These cosmetic imperfections arise from trapped gases—be it moisture, air, or decomposition byproducts—or inconsistencies in the molten plastic.
Why Silver Streaking Matters in Injection Molding？
Aesthetic Degradation: Silver streaks disrupt the uniform appearance of molded parts, making them look defective or low-quality.
Mechanical Integrity Risks: In some cases, the presence of silver streaks correlates with weaker areas in the molded part due to compromised melt flow or material degradation, which could reduce strength and lifespan.
Increased Scrap and Cost: These defects inflate production costs through higher scrap rates and rework, disrupting efficiency in high volume production.
Production Instability: Persistent silver streak issues point to underlying process instabilities that can cause other defects or inconsistencies in output quality.
Common Causes of Silver Streaking in Injection Molding
Several factors contribute to the formation of silver streaks during injection molding. Being able to identify and remedy these causes helps reduce defects significantly.
Moisture in Raw Materials
One of the primary causes of silver streaking is the presence of moisture or volatile substances in the raw plastic resin. During injection, trapped water vaporizes at high temperature, creating gas pockets that escape through the melt flow, causing silver streaks.
Contamination and Material Quality
Impurities such as dust, oil, or unmelted particles in the resin affect the melt flow and lead to defects, including silver streaks.
Thermal Decomposition and Overheating
When the plastic material is exposed to excessive heat or retained too long at high temperature in the barrel or nozzle, thermal degradation can occur. This causes the release of volatile gases, which then form bubbles or streak marks upon ejection.
Improper Injection Speed
High shear rates caused by narrow gates, small runners, or very fast injection speeds can damage the molten resin structure. This degradation at the molecular level manifests as flow lines or silver streaks on the part’s surface.
Sharp Corners and Weld Lines
Sharp corners or abrupt section changes in the mold design disrupt smooth flow, causing turbulence and localized air entrapment. Weld lines, where two flow fronts meet, can trap air or create weak spots, both of which are prone to silver streak formation.
Insufficient Packing and Holding Pressure
Insufficient packing or holding pressure results in incomplete cavity filling and insufficient compensation for material shrinkage. This can create voids or air pockets during solidification, which manifest as silver streaks or splay marks on the plastic surface.
Entrapped Air and Insufficient Mold Venting
Air trapped in the mold cavity or melt during injection can create streaks on the surface if it cannot escape efficiently. Poor mold vent design, blocked vents, or too rapid injection can cause air to be trapped and form visible silver streaks.
Mold Design and Temperature Variations
Uneven wall thickness, abrupt section changes, poor cooling channel design, and nozzle/mold temperature inconsistencies cause uneven flow or premature cooling. This results in schlieren or silver streak patterns.
How to Prevent Silver Streaks in Injection Molding？
Prevention is the best approach to solving silver streak defects in injection molding. Here are proven methods to minimize or eliminate these imperfections:
Proper Drying and Material Handling
Materials prone to moisture absorption must be dried under controlled conditions before molding. Store raw materials in dry, ventilated areas with moisture barriers to prevent reabsorption.
Optimizing Injection Molding Machine Parameters
Maintain barrel and mold temperatures within recommended ranges to avoid overheating or premature cooling. Adjust the injection speed and pressure to reduce shear and turbulence, avoiding rapid injection, which traps air. Use appropriate screw back pressure to ensure proper melt degassing in the barrel.
Improve Mold Design and Maintenance
Incorporate proper venting with adequate vent depth and width to allow trapped air to escape. Opt design gates, runners, and wall thicknesses to promote smooth melt flow and prevent abrupt changes, causing air pockets. Regularly clean and inspect molds to avoid contamination or blocked vents.
Employ Multi-Stage Injection and Process Control
Use injection profiles with variable speeds and pressures suited to part geometry. Monitor process data to identify potential issues before defects manifest.
How Zhongde Solves Silver Streak Defects
Using advanced CAD/CAM and flow simulation, Zhongde optimizes gate placement, runner balance, and venting to ensure smooth melt flow. Rigorous material testing and advanced drying systems prevent moisture and contamination issues, while real-time process monitoring maintains optimal injection parameters. With decades of experience, Zhongde consistently delivers defect-free parts. Welcome to contact Zhongde and get a custom injection molding service tailored to your needs.
