Delamination in the injection molding process is a challenge, leading to costly production. Understanding delamination in injection molding will help to avoid this defect and achieve high-quality injection molding products.
What Is Delamination in Injection Molding?

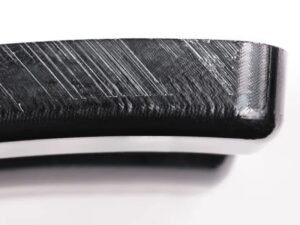

Delamination in injection molding occurs when the plastic part’s surface or internal layers separate, resembling peeled layers or flaking laminate. Sometimes visible as surface peeling or fish-scaling, this defect not only creates unsightly imperfections but also weakens the part structurally, threatening its durability and performance. In critical applications, such as automotive components or medical devices, this can lead to functional failures, safety concerns, or costly product recalls. Delamination is one of the common injection molding defects manufacturers must address early in design and processing.
Common Causes of Delamination in Injection Molding
Delamination in injection molding results from multiple factors. Identifying these causes is essential for effective prevention. Below are the primary reasons for delamination injection molding.
Material-Related Causes
- Contamination: Foreign materials, such as dust, oil, or regrind residues, weaken layer bonding. Contaminated resin creates barriers that prevent proper adhesion during molding.
- Incompatible Materials: In multi-material molding, such as dual-shot processes, when two plastics or additives fail to bond chemically or physically, it results in weak adhesion that eventually causes layer separation.
- Excessive Moisture: Hygroscopic resins, like nylon or ABS, absorb moisture. During molding, this moisture turns into steam, forming voids or blisters that lead to delamination in plastic injection molding.
Processing-Related Causes
- Low Mold Temperature: Insufficient mold temperature causes uneven cooling, creating shrinkage stress that separates layers.
- Improper Injection Speed: Slow injection speeds result in poor material flow, leading to weak layer bonding. Conversely, excessively high speeds increase shear stress, contributing to delamination.
- Inadequate Holding Time: Insufficient holding time during injection prevents proper packing, allowing layers to separate and form delamination in injection molding.
- Incorrect Melt Temperature: Melt temperatures that are too high or too low disrupt material flow and bonding, increasing the risk of delamination in plastic injection molding.
Equipment and Mold Design Causes
- Poor Gate Design: Narrow gates or sharp corners in runners restrict material flow, causing uneven pressure and delamination injection molding.
- Excessive Release Agent: Overuse of mold release agents forms a barrier between layers, preventing adhesion and leading to surface delamination in injection molding.
- Inadequate Venting: Poor mold ventilation traps air or gases, creating voids that contribute to delamination in plastic injection molding.
- Insufficient Cushion: Lack of sufficient material cushion in the injection unit leads to inconsistent pressure, promoting layer separation.
How to Prevent Delamination in Injection Molding?
Preventing delamination begins with a holistic approach that covers material, process, and equipment optimization:
Material Preparation
Dry Resins Thoroughly: Use a dehumidifying dryer to remove moisture from hygroscopic resins before molding. Maintain drying temperatures and times as specified by the resin supplier to prevent steam-related delamination in plastic injection molding.
Ensure Material Compatibility: Select resins with compatible chemical properties for multi-material molding. For TPU/TPE compounds, use a compatibilizer if needed to enhance bonding and avoid surface delamination in injection molding.
Clean Materials: Inspect and clean resins to remove contaminants like dust or oil. Use filtered regrind to reduce the risk of delamination injection molding.
Process Optimization
Increase Mold Temperature: Adjust mold temperature to the resin’s recommended range to ensure uniform cooling and reduce shrinkage stress, minimizing delamination in injection molding.
Optimize Injection Speed: Set injection speeds to balance material flow and shear stress. Gradual speed increases can prevent both weak bonding and excessive shear, reducing surface delamination in injection molding.
Extend Holding Time: Increase holding time to allow proper packing of the material, ensuring strong layer adhesion and preventing delamination in plastic injection molding.
Adjust Melt Temperature: Maintain melt temperatures within the resin’s specified range to ensure consistent flow and bonding, avoiding delamination injection molding.
Equipment and Mold Adjustments
Improve Gate Design: Use wider gates and rounded runner corners to ensure smooth material flow, reducing the risk of delamination in injection molding.
Minimize Release Agent: Apply mold release agents sparingly and uniformly to avoid creating adhesion barriers that cause surface delamination in injection molding.
Enhance Mold Venting: Add or clean vents in the mold to release trapped air or gases, preventing voids that lead to delamination in plastic injection molding.
Maintain Proper Cushion: Ensure sufficient material cushion in the injection unit to maintain consistent pressure during molding, reducing delamination injection molding.
