A Comprehensive Guide to the Types of Springs and Applications

Table of content

Do you know there are many different types of springs? Springs, those unassuming yet indispensable devices quietly enable a multitude of functions that impact our daily lives. From the controlled bounce of a mattress to the efficient suspension in vehicles, springs are the unsung heroes of modern engineering. These unobtrusive components, despite their unassuming appearance, play a pivotal role in maintaining balance, absorbing shocks, and facilitating motion in diverse applications. In this exploration, we delve into the world of springs, shedding light on their significance and multifaceted presence that resonates in every facet of our existence.

Definition of Springs

Springs are elastic mechanical devices designed to store potential energy when compressed or stretched and release it when the applied force is removed. These versatile components embody the principle of elasticity, showcasing their ability to deform under force and subsequently return to their original shape upon force removal. At the core of their design lies their ingenious capability to absorb energy during compression and release it in controlled bursts, rendering them indispensable in countless applications across various fields. Springs, with their unassuming nature, exemplify the intricate balance between form, function, and physics, making them an integral part of modern innovation.

Functions of Springs

Springs are remarkable for their diverse and dynamic functions that extend far beyond their unassuming appearance. Here are some key functions that springs adeptly perform:

Absorbing Shocks and Vibrations:

Springs act as cushioning agents, absorbing sudden impacts and vibrations to prevent damage to delicate components. This function is particularly crucial in automotive suspensions, machinery, and even sports equipment.

Energy Storage:

One of the most distinctive features of springs is their capacity to store potential energy when compressed or stretched. This energy can be released in controlled bursts, making springs invaluable in applications like clockwork mechanisms and even in wind-up toys.

Providing Force and Tension:

Springs are masters of force, capable of generating tension and compression forces. This function finds use in countless applications, from the tension in retractable seatbelts to the force applied in industrial clamps.

Facilitating Motion and Movement:

Springs are the driving force behind the smooth motion. They contribute to the smooth opening and closing of doors, the gentle rebound of pogo sticks, and even the precision of surgical instruments.

Balancing and Controlling Mechanisms:

Springs aid in achieving equilibrium in mechanisms, providing the necessary counterforce to maintain balance. Examples include the precise control of valves in hydraulic systems and the delicate balance achieved in weighing scales.

Springs Working Principle

The behavior of springs is intricately governed by a foundational principle known as Hooke’s Law, a cornerstone of mechanical physics that explains the interaction between force, displacement, and the inherent properties of springs.



Hooke’s Law: Named after the renowned physicist Robert Hooke, Hooke’s Law establishes a linear relationship between the force applied to a spring and the resulting displacement it undergoes. This principle asserts that within the elastic limit, the force required to stretch or compress a spring is directly proportional to the distance it is displaced from its equilibrium position.



Force and Displacement: The interplay between force (F) and displacement (x) can be succinctly expressed through the equation: **F = kx**, where ‘k’ represents the spring constant. The spring constant signifies the stiffness of the spring, describing how much force is required to produce a certain amount of displacement. It’s crucial to note that Hooke’s Law remains valid only within the elastic limit, beyond which permanent deformation occurs.



Mechanical Harmony: Hooke’s Law forms the foundation for understanding spring behavior, enabling engineers to predict and control the response of springs to various forces. This knowledge empowers designers to harness springs’ elastic properties for specific applications, ensuring optimum performance while avoiding structural compromise.

Different Types of Springs and Their Applications

Springs can be categorized based on various factors such as their shape, function, and load-bearing capacity. Here are some common ways of categorizing different types of springs:

Based on Shape:

Coil Springs: Coil springs are versatile helical wound springs that come in various forms, each tailored to specific applications.



Leaf Springs: Leaf springs consist of stacked curved metal strips, forming a flexible yet robust mechanism that primarily serves vehicle suspensions. Their ability to distribute load makes them crucial components in trucks, trailers, and certain automotive systems.



Belleville Springs: Belleville springs, also known as conical disc springs or Belleville washers, exhibit a conical shape. They exert axial force and find applications in bolt preload mechanisms, electrical contacts, and other scenarios where controlled axial compression is needed.

Based on Function:

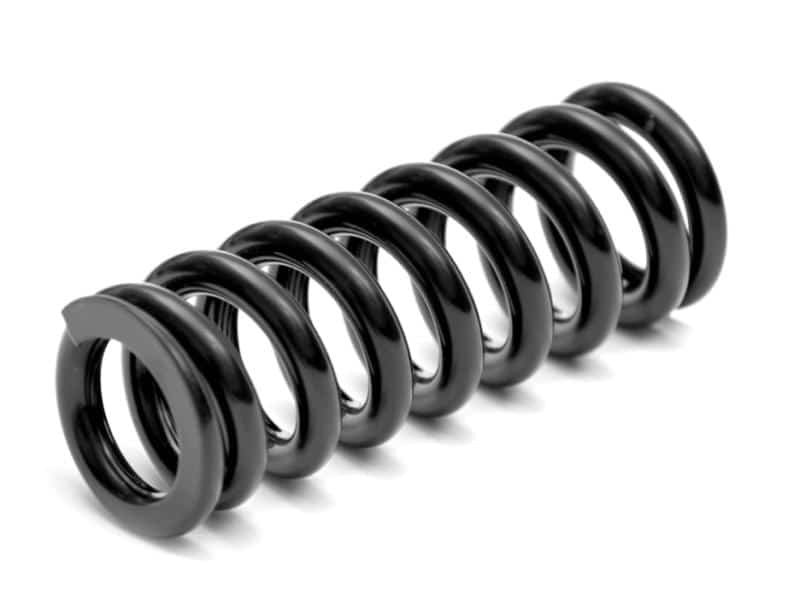

Compression Springs:

Compression springs excel at absorbing axial loads by compressing when force is applied. They play roles in automotive suspensions, hydraulic systems, and industrial machinery where controlled compression is vital.

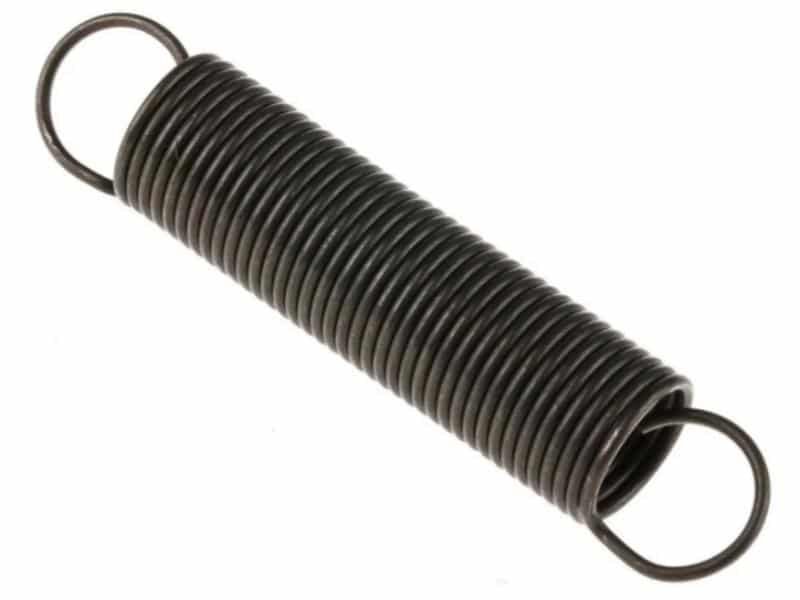

Extension Springs:

Extension springs, designed to resist stretching forces, are employed in diverse applications such as trampolines, garage doors, and even hospital beds to assist with adjustments.



Torsion Springs:

Torsion springs generate torque around a central axis when twisted, making them ideal for applications like door handles, balance mechanisms, and even the deployment of certain folding devices.

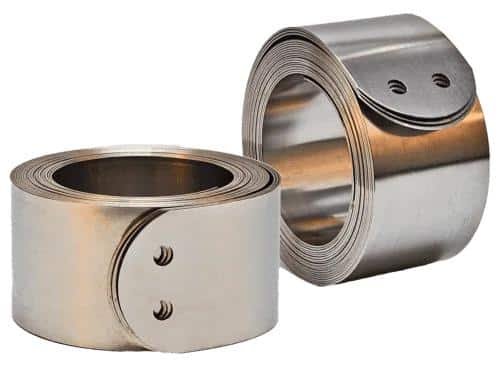

Constant Force Springs:

Constant force springs provide consistent force over their extension, making them valuable in applications like tape measures, window blinds, and other scenarios where even force distribution is essential.



Wave Springs:

Wave springs are designed to fit into tight spaces while offering similar force as larger springs. Their compact design finds use in applications where space constraints demand efficient force generation, such as in medical devices and precision machinery.

Based on Load-Bearing Capacity:

Light-Duty Springs:

Light-duty springs are suitable for applications with lower load requirements. They find use in areas such as toys, light machinery, and consumer products where moderate force is needed.



Heavy-Duty Springs:

Heavy-duty springs are designed to withstand higher loads and stresses. They are employed in heavy machinery, industrial equipment, and automotive systems requiring robust force absorption.

Materials of Springs and Its Applications

The choice of materials for springs is a critical aspect that directly influences their functionality, durability, and suitability for specific applications. Springs are crafted from a variety of materials, each offering distinct properties that align with the demands of various industries. Let’s explore some of the commonly used materials for springs:

High-Carbon Steel Springs:

High-carbon steel is a popular choice due to its excellent combination of strength and resilience. It offers superior resistance to deformation under high stress and maintains its shape over extended usage.



Applications: Automotive suspensions, industrial machinery, and heavy-duty equipment.

Stainless Steel Springs

Stainless steel springs are renowned for their corrosion resistance, making them suitable for environments exposed to moisture and chemicals. They maintain their strength and performance even in harsh conditions.



Applications: Medical devices, marine equipment, food processing machinery.

Alloy Steels Springs

Alloy steels incorporate specific alloying elements to enhance properties such as toughness and heat resistance. They are used when increased strength and fatigue resistance are essential.



Applications: Aerospace components, automotive engine valve springs, high-temperature applications.

Non-Ferrous Metals (Bronze, Brass) Springs

Non-ferrous metals are preferred when electrical conductivity or non-magnetic properties are needed. They also offer corrosion resistance in various environments.



Applications: Electrical contacts, musical instruments, precision instruments.

Rubber and Plastic Composites Springs

Rubber and plastic materials are utilized when a combination of elasticity and non-metallic properties is required. They are suitable for applications where dampening or vibration absorption is crucial.



Applications: Automotive suspension components, shock absorbers, noise reduction systems

Advantages of Springs

Springs, though seemingly unassuming, offer a myriad of advantages that underscore their indispensability across various industries. Here are some key benefits of utilizing springs:

Efficient Energy Storage and Release:

Springs excel at efficiently storing potential energy when compressed or stretched and releasing it with precision upon force removal.

This controlled energy transfer is harnessed in devices ranging from mechanical clocks to complex automotive suspensions.

Wide Range of Load-Bearing Capacities:

Springs are available in a spectrum of sizes and configurations, enabling them to accommodate diverse load requirements.

From delicate components to heavy-duty machinery, springs are tailored to support varying forces with precision.

Versatility for Different Applications:

The versatility of springs shines through their adaptability to a wide array of applications, from medical devices to industrial machinery.

Springs contribute to everything from subtle adjustments in fine instruments to pivotal roles in complex mechanical systems.

Long Service Life with Proper Maintenance:

Springs, when designed and maintained correctly, exhibit remarkable durability.

Regular maintenance, including monitoring stress levels and addressing wear, ensures prolonged service life and consistent performance.

Disadvantages of Springs

While springs offer a plethora of advantages, it’s essential to acknowledge their limitations. Here are the key disadvantages associated with the use of springs:

Fatigue and Eventual Failure Over Time:

Springs, like any mechanical component, are susceptible to fatigue due to repeated loading and unloading cycles.

Over time, cyclic stress can lead to microscopic cracks, weakening the material and eventually causing failure.

Limitations in Extreme Conditions (Temperature, Corrosion):

Springs can experience diminished performance or premature failure in extreme conditions.

High temperatures can lead to loss of material strength, while corrosive environments can degrade spring materials, affecting their structural integrity.

Complex Design Requirements

Designing springs with optimal performance requires a deep understanding of material properties, forces, and environmental factors.

The complexity of achieving precise spring behavior can be a challenge in intricate systems.

Maintenance and Inspection Demands:

Springs, particularly those exposed to high-stress or harsh environments, require regular inspection to detect signs of wear, fatigue, or deformation.

Neglecting maintenance can lead to unexpected failures and disruptions.

Conclusion

In the world of mechanics, springs hold an important role. From absorbing shocks to generating force, they offer efficiency to our devices. Springs make science and ingenuity, form and function harmonious and efficient. While their advantages are clear—efficient energy storage, adaptability, and longevity—their limitations, such as fatigue and susceptibility to extreme conditions, must be noted. As these unassuming devices propel industries forward, they remind us that even the smallest components play a grand part in complex engineering.
