Thermoset compression molding transforms raw materials into durable, high-strength components vital for industries like automotive, electronics, and medical manufacturing. This cost-effective process leverages heat and pressure to craft parts that withstand extreme conditions, making compression molding thermoset a cornerstone of modern production. This article explores the essentials of thermoset compression molding, detailing its compression molding process, material types, unique characteristics, equipment, and how it differs from injection molding.
What is Thermoset Compression Molding?

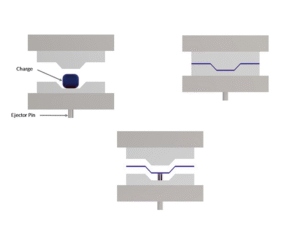

Thermoset compression molding is a manufacturing process where a pre-measured amount of thermoset material—often in the form of powder, granules, or prepregs—is placed into a heated mold cavity. The mold is then closed, and pressure is applied to force the material to flow and fill the mold. Under heat and pressure, the thermoset material undergoes an irreversible chemical cross-linking reaction, curing into a solid, rigid part that retains the shape of the mold.
Common Thermoset Materials Used in Compression Molding
Thermoset compression molding accommodates a variety of thermoset polymers. The main types include:
- Phenolic resin
- Melamine resin
- Urea resin
- Epoxy resin
- Polyester resin
- Silicone resin
- Natural rubber
- Unsaturated polyester resin
- Polyimide
- Furan resi
- Alkyd resin
- Polyurethane
These resins are commonly used to produce compression molded plastics with excellent dimensional stability, thermal resistance, and mechanical strength.
Key Characteristics of Thermoset Compression Molding
Thermoset compression molding has distinct features that differentiate it from other molding methods:
- Irreversible Chemical Reaction: The curing process forms permanent cross-links, making the part rigid and heat resistant.
- Precise Temperature and Pressure Control: Maintaining optimal heat and pressure is critical to ensure complete curing and avoid defects like warping or incomplete filling.
- Material Flow Behavior: Thermoset materials exhibit a short “lowest viscosity” window during which they flow easily to fill the mold before curing begins.
- High Mold Pressure: Due to the higher viscosity of filled thermoset compounds, compression pressures are generally higher than those used for thermoplastics.
- Production Efficiency: Though cycle times are longer than injection molding, compression molding is well-suited for medium to large parts and moderate production volumes.
- Flash Formation: Excess material is squeezed out at mold parting lines, requiring post-molding trimming.
While this method is ideal for high-strength applications, understanding the advantages and disadvantages of compression molding can help you determine if it’s the right fit for your specific needs.
Equipment and Molds for Thermoset Compression Molding

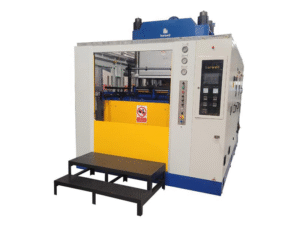

Thermoset compression molding relies on robust hydraulic presses, delivering tens to thousands of tons of force, and two-part metal molds (flash, positive, or landed plunger types). These thermoset molds must endure high temperatures (300–400°F) and pressures, with flash molds being cost-effective for simpler parts.
Thermoset Compression vs. Injection Molding
Thermoset compression molding and injection molding both shape thermoset materials, while differ significantly in their approach and outcomes. The table below highlights key distinctions:
| Aspect | Compression Molding | Injection Molding |
|---|---|---|
| Material Handling | Manual/automatic loading of preforms | Injection of molten material via screw |
| Cycle Time | 1–5 minutes, slower due to curing | Seconds to minutes, faster cycles |
| Part Complexity | Simple to moderate geometries | Complex shapes with thin walls |
| Material Types | Primarily thermosets (e.g., SMC, BMC) | Thermosets and thermoplastics |
| Applications | Large, strong parts (e.g., bumpers) | Small, intricate parts (e.g., connectors) |
Conclusion
Thermoset compression molding remains a vital process in manufacturing durable, heat-resistant, and chemically stable components. Its ability to produce complex shapes with excellent mechanical properties makes it a go-to method for industries ranging from automotive to electronics. Zhongde offers expert thermoset compression molding services, delivering tailored solutions for high-performance parts. Contact Zhongde to get a solution for your production.
