Injection Molding Gate Design: Enhancing Plastic Manufacturing

Table of content

Injection molding is a popular method of creating plastic parts. Molten plastic is injected into a mold cavity, allowed to cool and solidify, and the final item is ejected. The gate is an essential part of the injection molding process. The injection molding gate is the point of entrance for the molten plastic into the mold cavity. We shall examine the significance of injection molding gate design and its bearing on component quality in this blog.

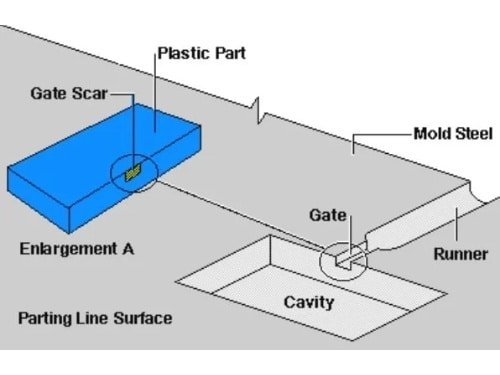

What is an Injection Molding Gate?

The injection molding gate is the link between the runner system and the final part. The gate in injection molding is a tiny hole or channel that joins the runner system, which transports molten plastic to the mold chamber. It regulates the plastic material’s flow rate, pressure, and direction during the filling stage. The gate’s layout and design significantly influence the quality and features of the finished product.

Importance of Injection Molding Gate Design

The gate design is essential for producing plastic parts of the highest caliber. It immediately influences the part’s appearance, strength, dimensional accuracy, and internal structure, among other important elements. A gate design that has been optimized ensures optimum material flow, reduces flaws, and improves overall moldability.

Injection Molding Gate Types By Manually Trimmed

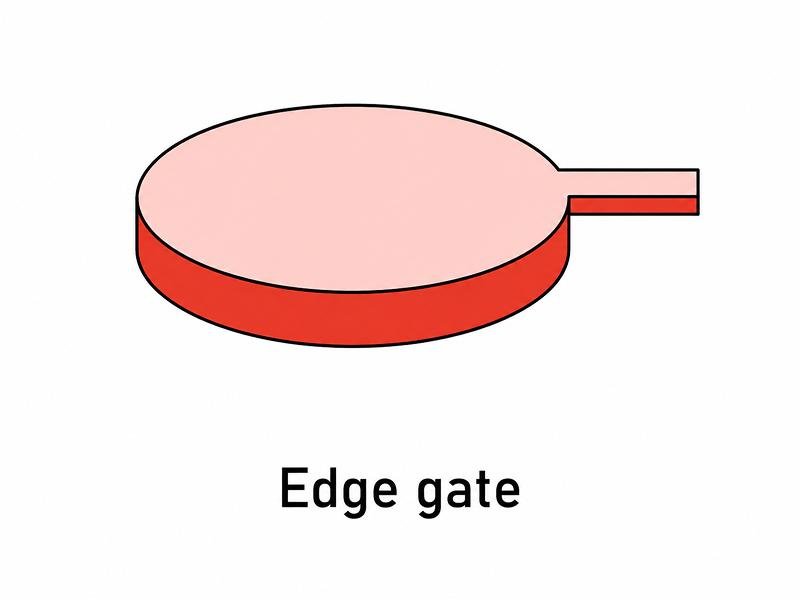

1.Edge Gate

The edge gate is typically located at the part’s edge, often on a straight or flat portion. Its main benefit lies in its easy removal after production, eliminating the need for extra trimming or finishing. This gate ensures uniform material distribution and is ideal for flat parts with clearly defined edges.

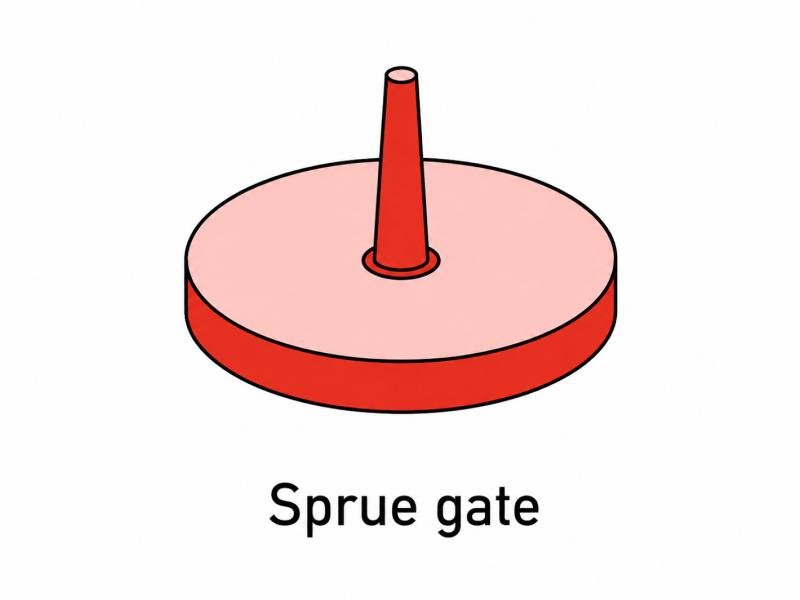

2.Direct Sprue Gate

The direct sprue gate is a commonly employed and fundamental gate type directly linking the sprue channel to the mold cavity. This direct connection ensures efficient material flow during the injection. While it is a straightforward and economical gate design, it may leave a visible mark on the final part, called a gate mark or vestige. Proper gate design and placement can help minimize this mark.

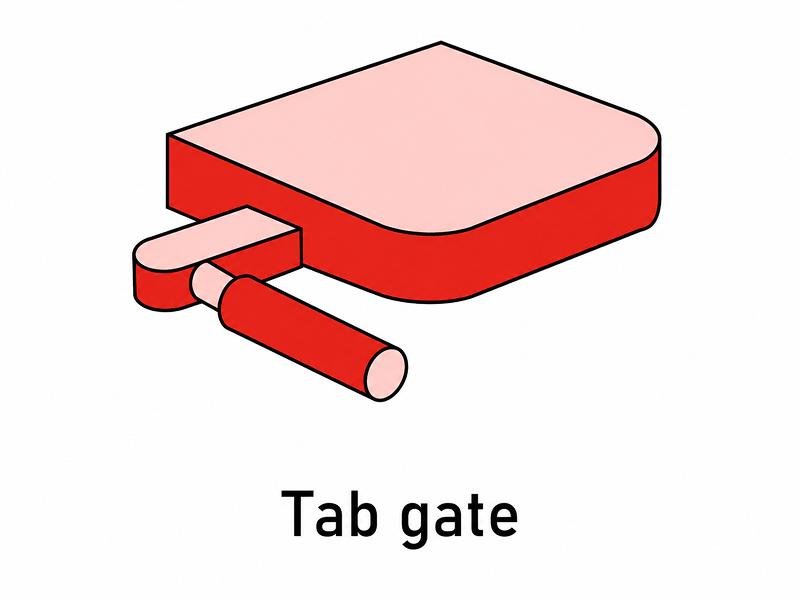

3.Tab Gate

Tab gates are flat, surface-mounted gates used for small, delicate parts where aesthetics matter. They leave minimal visible marks, allowing for a clean and precise appearance. Customizable in size and shape, tab gates are ideal for applications requiring minimal or hidden gate marks.

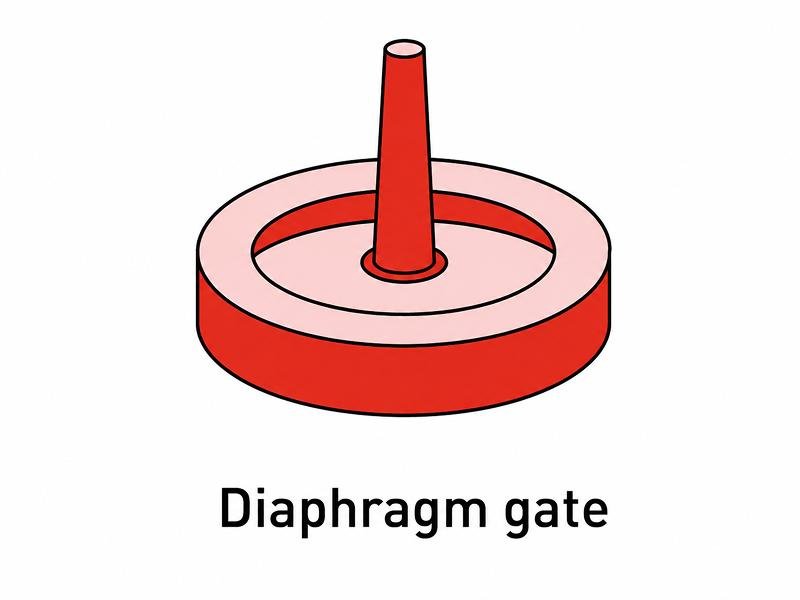

4.Diaphragm Gate

Diaphragm gates are flexible valves used for gating large parts, enabling the controlled flow of molten plastic into the mold cavity. They facilitate easy removal after molding, minimizing post-processing. Ideal for sizable components, diaphragm gates ensure uniform filling and minimize defects or voids.

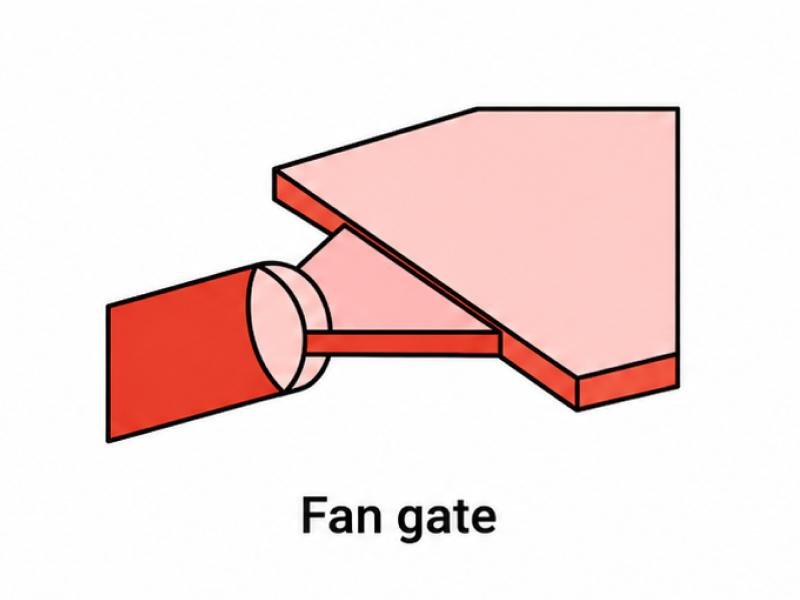

5.Fan Gate

Fan gates, shaped like a wide fan, ensure the even distribution of molten plastic as it enters the mold cavity. They are ideal for larger parts with thick walls, promoting consistent filling and minimizing material flow problems. The broad gate opening helps prevent weak points such as weld lines, enhancing part quality. This ensures controlled material flow, which improves the overall results.

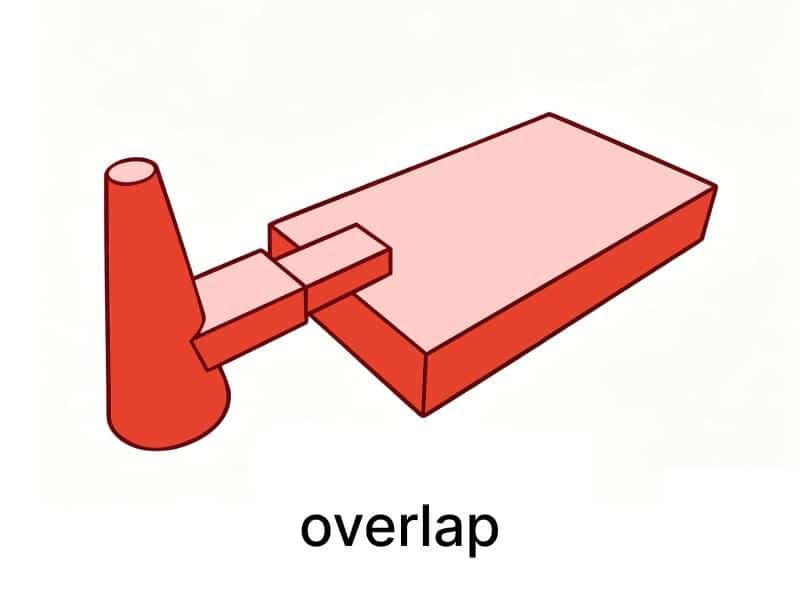

6.Overlap Gate

Overlap gates are commonly used in multi-cavity molds to produce multiple parts simultaneously. They efficiently divide and direct molten plastic to each cavity, reducing visible gate marks. Overlap gates promote uniform part quality by ensuring consistent fill rates across all cavities. Ideal for high-volume production, they maximize productivity.

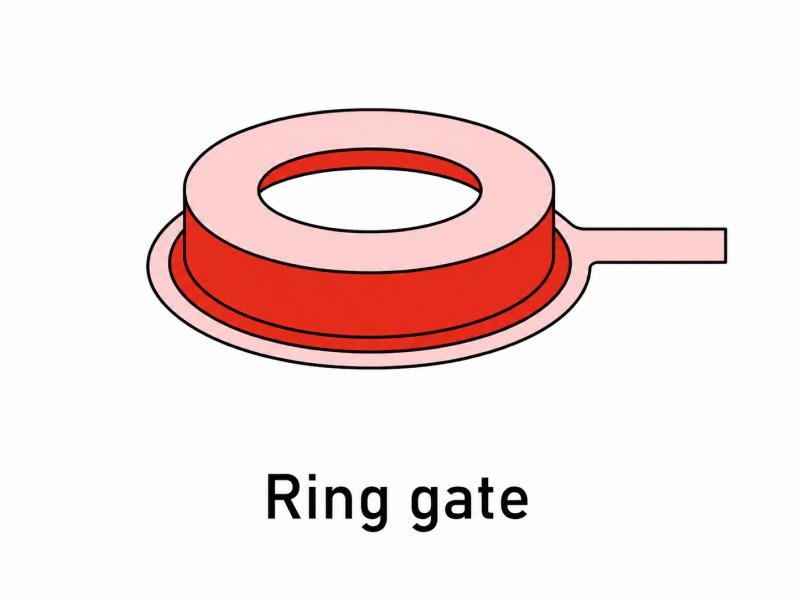

7.Ring Gate

Ring gates are circular-shaped gates ideal for cylindrical or circular parts like bottles or containers. They ensure balanced filling and easy part removal. The symmetrical material flow achieved by the circular gate design ensures uniform cavity filling. Additionally, the ring gate can be easily removed post-molding without leaving noticeable marks, making it suitable for applications emphasizing aesthetics and ease of post-production.

Injection Molding Gate Types By Automatically Trimmed

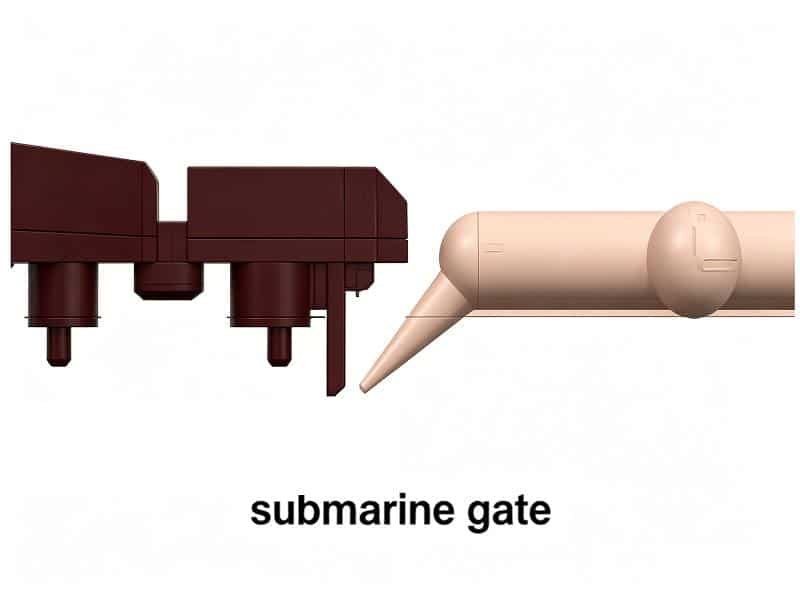

1.Submarine Gate

Submarine gates are located beneath the part’s surface, making them virtually invisible on the finished product. They offer excellent aesthetic qualities but require a more complex mold design.

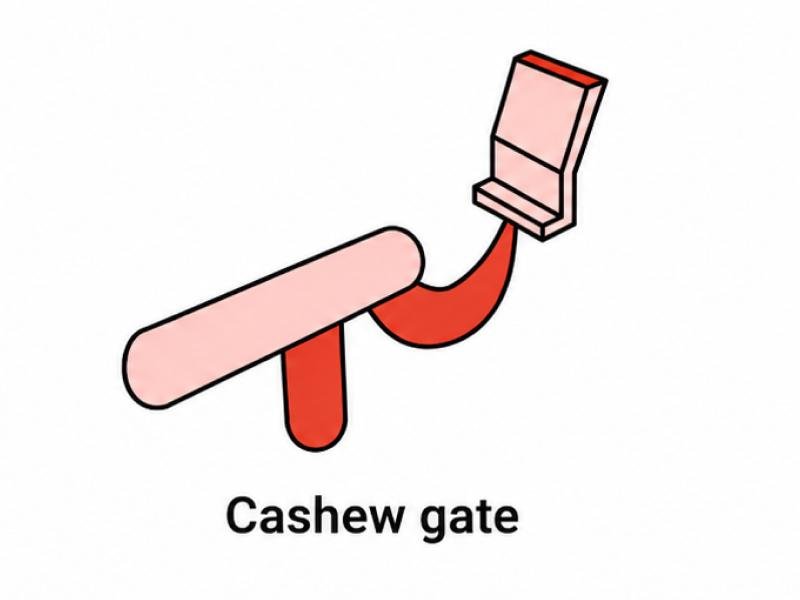

2.Cashew Gate

Cashew gates are similar to submarine gates but have a distinctive shape resembling a cashew nut. They provide good cosmetic results and are suitable for parts with tight dimensional requirements.

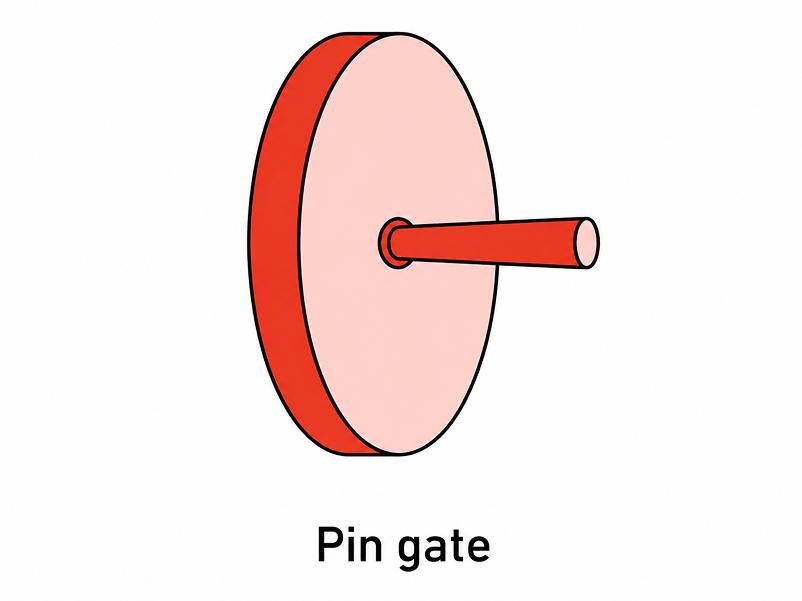

3.Pin Gate

Also known as post or tunnel gates, pin gates are small pins that create a precise entry point for the molten plastic. They offer minimal gate marks and are commonly used for high-precision parts.

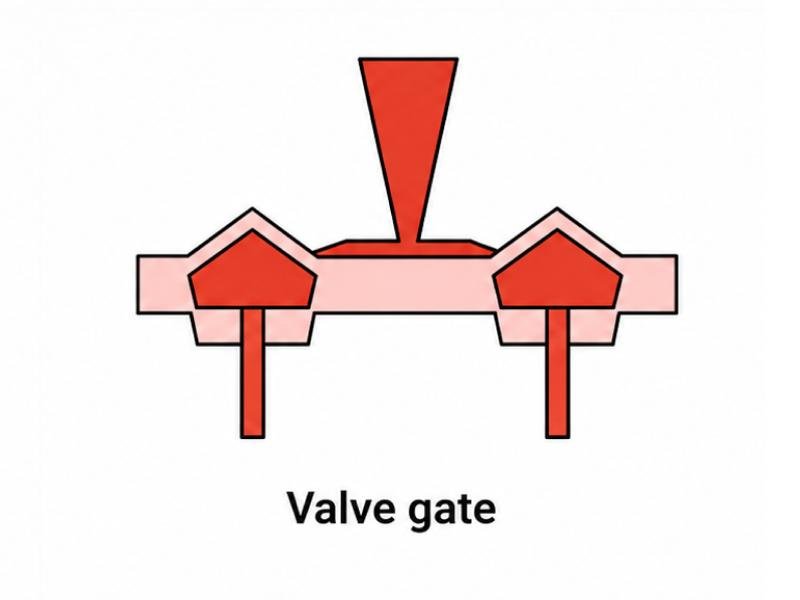

4.Hot Runner Valve Gates

Hot runner valve gates are used in advanced injection molding systems. They employ a heated manifold with individual valve gates to control the flow of molten plastic. This gate type ensures consistent temperature and pressure, producing high-quality parts with minimal waste.

types of injection modling gate design-min

The Impact of Gate Design on Part Quality in Injection Molding

The design of the gate directly influences part quality, and several issues can arise if it is not properly optimized.


1. Jetting

Improper gate design can cause jetting, which is the formation of visible lines or streaks on the part’s surface. Jetting occurs when the molten plastic enters the mold cavity with high velocity, leading to poor cosmetic appearance. By selecting the appropriate gate type and size, the flow velocity can be controlled, minimizing jetting and improving the overall surface finish of the part.


2. Overheating

Inadequate gate design can result in overheating of the plastic material. When the gate is too small or improperly located, it can cause excessive shear heating, leading to material degradation, discoloration, or even burning. It is crucial to consider the material’s heat sensitivity and select a gate design that ensures proper temperature control during the injection process.

Injection Molding Gate Design Considerations

To achieve optimal part quality, several considerations must be taken into account when designing the gate:

1.Injection Molding Gate Location

The gate should be strategically positioned to ensure efficient filling of the mold cavity. Factors such as part geometry, flow distance, and material characteristics should be considered to determine the most suitable gate location. Achieving uniform material flow and avoiding areas prone to cosmetic defects or weak structural integrity is essential.

2.Injection Molding Gate Size

The gate size directly affects the flow rate and pressure of the molten plastic. A small gate may restrict material flow, leading to incomplete filling or increased flow resistance. On the other hand, an oversized one may cause excessive pressure drop and potential part distortion. Proper gate sizing is crucial for achieving balanced filling and minimizing defects.

3.Part Shape and Finish

The part’s shape and surface finish requirements influence the choice of gate design. For complex geometries or parts with strict cosmetic requirements, gates that leave minimal marks or provide hidden gate locations may be preferred. Consideration should also be given to gate vestige, which refers to the small mark or indentation left on the part after gate removal.

4.Material Flow Distances

The flow distance from the gate to the farthest point of the mold cavity affects the material’s cooling rate and pressure loss. Longer flow distances may result in uneven cooling, warpage, or incomplete filling. Proper gate placement and design can help minimize flow distance and ensure consistent material flow throughout the part.

5.Number of Injection Molding Gates

The number of gates required depends on the part’s size, complexity, and desired filling characteristics. Multi-cavity molds may utilize multiple gates to achieve balanced filling and optimize production efficiency. However, it is essential to ensure that the gates do not interfere with each other or cause flow imbalances between cavities.


Injection molding gate design plays a critical role in achieving high-quality injection molded plastic parts. Proper gate selection, sizing, and placement are essential to ensure uniform filling, minimize defects, and enhance overall part aesthetics and structural integrity.

By considering factors such as part geometry, material characteristics, and production requirements, injection molders can optimize gate design for efficient and successful plastic manufacturing processes. Attention to gate design can significantly produce top-quality prototypes and mold components, ultimately leading to customer satisfaction and business success in the injection molding industry.
