Contamination in injection molding is a critical issue that affects the quality, performance, and cost-effectiveness of molded plastic parts. Understanding what contamination in injection molding is, its causes, and preventative measures is important for china custom parts manufacturer in aiming to produce high-quality products.
What is Contamination in Injection Molding?

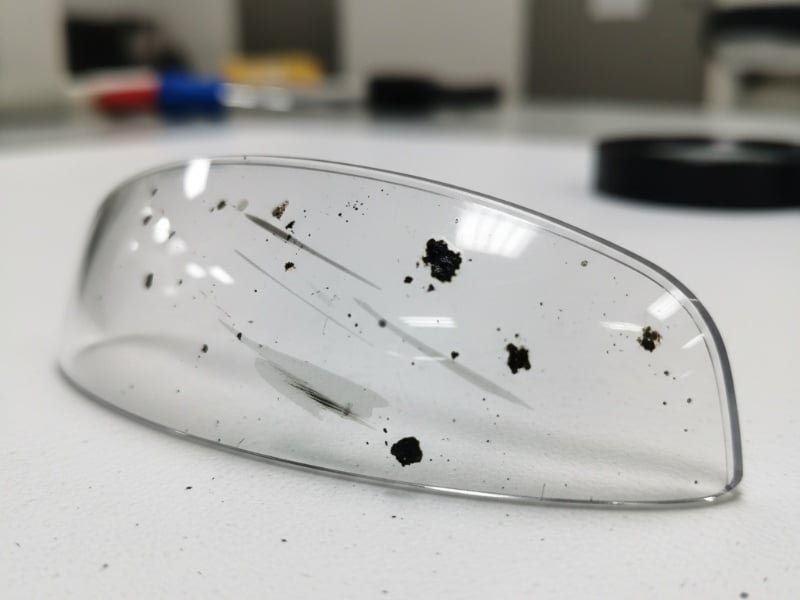

Contamination injection molding refers to the presence of unwanted substances or foreign materials in the molten plastic resin or the injection molding system during the manufacturing process. These contaminants can include dust, dirt, oil residues, degraded plastic, moisture, or even metal particles. The most common manifestations of contamination include discoloration, streaks, black spots, splay marks, delamination, and surface blemishes. Such defects in the injection molding process not only ruin the aesthetics of the component but often result in mechanical weaknesses, making parts prone to failure under stress. Ultimately, contamination leads to increased scrap rates, rework, downtime, and unexpectedly high costs.
Causes of Contamination in Injection Molding
The formation of contamination in injection molding arises from a combination of factors related to materials, equipment, environment, and process controls.
1. Material Handling and Storage
Plastic resins stored in open containers or exposed to dusty, dirty environments can pick up foreign particles before even entering the molding machine. Additionally, improper handling of regrind materials can introduce degraded particles or mix incompatible resin types, further exacerbating contamination issues.
2. Equipment and Mold Condition
Injection molding machines that are not regularly cleaned and maintained can accumulate carbonized material or debris in the barrel and screw areas. Similarly, molds with moving parts, such as slides and lifters, require appropriate lubrication; however, excess lubricant can seep into the mold cavity, contaminating the molten plastic.
3. Environmental Factors
Ambient dust, dirt, and airborne particles from the production environment can settle on molds or raw materials, entering the molded part as contaminants. This is especially true in facilities where housekeeping practices are not stringent or where the ventilation system is inadequate. Operator careless handling, presence of oil or grease, unclean gloves, or food residues near the production area can all lead to defects in the final product.
4. Process Parameters
Incorrect process settings, such as excessive melt temperature or slow injection speeds, may cause plastic degradation, which can also be misinterpreted as contamination injection molding defects. Wet resins can cause hydrolysis, leading to bubbles, delamination, and weak spots.
How to Prevent Contamination in Injection Molding?
Preventing contamination injection molding requires a comprehensive approach. The following measures form the foundation of effective contamination control:
1. Material Storage and Handling
Seal and store raw materials in clean, dry containers to protect them from dust and moisture. Ensure that regrind is separated and strictly controlled to avoid mixing incompatible materials or dirty scrap. Use proper drying equipment to remove moisture from resins before processing.
2. Equipment Cleaning and Maintenance
Implement regular cleaning protocols for injection molding machines and molds. Use purging compounds to clear residual materials effectively during material changes or shifts. Maintain molds with proper lubrication, but avoid excess that could enter the molded parts. Inspection and repair of machines to prevent oil leaks and wear-related debris are essential.
3. Production Environment and Operator Training
Maintain a clean manufacturing environment through scheduled cleaning of floors, surfaces, ceilings, and air ducts. Train operators in best practices, emphasizing the importance of clean gloves, proper handling, and avoiding food/drink near molding lines.
4. Process Optimization
Carefully control melt temperatures, injection pressures, and cycle times to prevent plastic degradation. Monitor moisture levels in raw materials and adjust drying times accordingly. Purge thoroughly when switching materials or colors to avoid cross-contamination.
5. Optimize Design Considerations
Optimize design molds to facilitate material flow and reduce areas where contaminants might accumulate or defects might develop.
Zhongde’s Expertise in Tackling Contamination Injection Molding
Contamination injection molding remains a complex challenge in the plastic manufacturing industry. Leveraging advanced technology, experienced personnel, and stringent quality protocols, Zhongde offers custom plastic moulding solutions that eliminate contamination sources and ensure stable, high-quality injection molding outcomes. As a trusted china custom parts manufacturer, Zhongde helps clients achieve both cost-effectiveness and consistent part quality.
