Medical injection molding is a critical manufacturing process that forms the modern healthcare technology. In this comprehensive article, we will explore the fundamentals of medical injection moulding.
What Is Medical Injection Molding?
Medical injection molding is a highly precise manufacturing technique designed specifically for producing plastic parts used in medical applications. Medical molding operates under stringent conditions to ensure biocompatibility, sterility, and compliance with global standards. This process is conducted in controlled cleanroom environments. These cleanrooms maintain positive air pressure, HEPA filtration, and strict protocols for personnel attire, ensuring that every molded part is free from impurities that could compromise patient safety.
Clean rooms used for medical molding are classified under standards like ISO 14644, with common classifications including ISO Class 7 or Class 8, which control airborne particles and microbes at extremely low levels. Additionally, production environments apply rigorous sterilization methods such as autoclaving (high-pressure steam sterilization), ethylene oxide gas sterilization, and ultraviolet light treatments to ensure components remain sterile and safe for use.
Medical Injection Molding Process
The medical molding process typically follows these four core stages. It begins with selecting biocompatible materials, which are then melted in a heated barrel. The molten material is injected under high pressure into a precision-engineered mold cavity, where it cools and solidifies. Once formed, the part is ejected, inspected, and sterilized. This cycle, often completed in seconds, ensures high throughput while maintaining accuracy.
Why Is Medical Injection Molding Important to Healthcare?
The healthcare industry requires components that meet rigorous standards for precision, sterility, and biocompatibility. Here’s why medical injection moulding is critical:
- Precision and Reliability: Medical device injection molding achieves tolerances as tight as ±0.01mm to ensure parts fit correctly. This precision is vital for patient safety and device functionality.
- Regulatory Compliance and Biocompatibility: Moulding medical parts adheres to stringent standards like ISO 13485 and FDA regulations, ensuring materials are biocompatible and safe for bodily contact.
- Sterility: Medical injection molding is performed in controlled cleanroom environments, and sterilization methods maintain component sterility, preventing contamination.
- Scalability and Cost-Efficiency: Medical injection molding supports high-volume production, reducing per-unit costs and making advanced medical devices widely accessible. Its scalability is crucial for meeting global health demands.
- Complex Geometries: Medical molding enables intricate designs unachievable with other methods, fostering innovation in minimally invasive tools, wearable monitors, and personalized implants. This flexibility drives breakthroughs in diagnostics and treatment.
- Sustainability and Waste Reduction: Optimized mold designs in medical device injection moulding minimize material waste, aligning with sustainable healthcare practices while maintaining quality.
Types of Medical Injection Molding Processes
Medical molding includes various techniques, each tailored to specific medical product requirements. Common medical molding techniques include:
Standard Injection Molding: This core method in medical injection molding injects a single material into a mold to produce uniform parts like syringe barrels or vial caps. It offers high repeatability and speed, ideal for sterilizable components.
Insert Molding: Encapsulates pre-formed metal or plastic inserts with molded plastic, combining materials for complex functions and reduced assembly.
Overmolding: Layers one material over another to create integrated parts, often for ergonomic grips or to improve device aesthetics.
Micro-Molding: Focused on tiny components, micro-molding produces parts with sub-millimeter features, such as stent delivery systems or microfluidic devices. Its precision is critical for minimally invasive procedures in medical molding.
Multi-Shot Molding: This technique, also called two-shot molding, injects multiple materials in sequence within one mold to ensure strong material bonds, ideal for complex drug delivery pens.

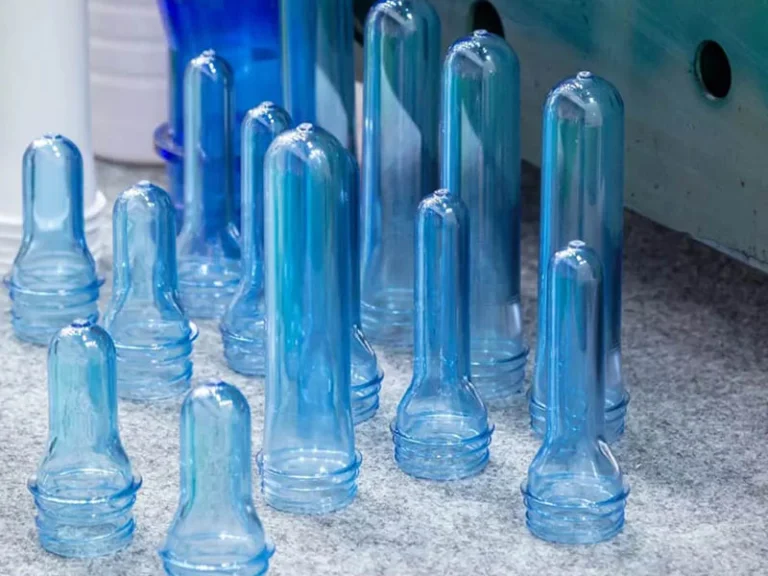

Thin-Wall Molding: Produces lightweight, ultra-thin parts (typically wall thickness below 1 mm) ideal for compact device casings and disposables.
Gas-Assisted Molding: Injects pressurized gas to create hollow sections, reducing material use while enhancing surface finish and structural integrity.
Metal Injection Molding (MIM): Combines powdered metals and binders to produce dense metal parts used in surgical instruments.
Liquid Silicone Molding (LSR): Uses biocompatible liquid silicone rubber for flexible parts like tubing and respiratory masks, produced under sterile conditions.
Common Materials Used in Medical Injection Molding
Medical molding employs a variety of polymers and materials. Those materials need to balance performance, safety, and regulatory requirements. Here are the common medical plastics.
- Polyethylene (PE): Polyethylene offers flexibility, strength, chemical resistance, and affordability. It is ideal for IV tubing and containers in medical injection molding.
- Polypropylene (PP): Polypropylene provides durability, moisture resistance, excellent sterilizability, and toughness. It is commonly used for syringe bodies and labware in moulding medical applications.
- Polycarbonate (PC): Polycarbonate delivers optical clarity and high impact resistance. It is perfect for diagnostic device housings and clear components in medical device injection molding.
- Polyether Ether Ketone (PEEK): Polyether Ether Ketone offers durability, heat resistance, wear resistance, and biocompatibility. It is frequently used in orthopedic implants and dental devices for medical molding.
- Polystyrene (PS): Polystyrene is chemically stable and clear. It is commonly used in laboratory disposables, such as petri dishes, in medical injection moulding.
- Perfluoroalkoxy (PFA) and Fluorinated Ethylene Propylene (FEP): PFA and FEP offer great chemical resistance. They are used in medical device injection moulding for components requiring robust chemical stability.
- Thermoplastic Elastomers (TPEs): Thermoplastic Elastomers combine rubber-like flexibility with the ease of thermoplastic molding. They are used for overmolded parts and catheters in medical molding applications.
- Silicone: Silicone is highly flexible and biocompatible. It is extensively used in tubing and seals for medical injection molding.
- Liquid Silicone Rubber (LSR): Liquid Silicone Rubber enables intricate designs with great tear resistance.
- Acrylonitrile Butadiene Styrene (ABS): Acrylonitrile Butadiene Styrene offers durability for non-implantable devices. It is widely used in medical device injection molding for robust, cost-effective parts.
When selecting materials for medical device injection moulding, key considerations include biocompatibility per ISO 10993 to prevent adverse reactions, compatibility with sterilization methods to maintain integrity, and mechanical properties like tensile strength for functional reliability. Chemical resistance ensures durability against bodily fluids or disinfectants, and regulatory compliance with FDA or EU MDR standards is mandatory.
Common Applications of Medical Injection Molding
Medical molding supports manufacturing across a broad spectrum of healthcare products, including:
Implants and Prosthetics: Artificial joints, dental implants, and other prosthetics
Surgical Instruments: Handles, forceps, and retractors.

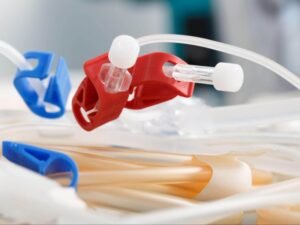

Disposable Consumables: Syringes, test tubes, specimen containers, IV Components such as connectors, drip chambers, and valves.
Diagnostic Device Housings: Enclosures for blood glucose monitors or PCR machines, etc.
Laboratory Products: Components for microplates, pipettes, and diagnostic cartridges.
Sterile Packaging Components: Blister packs, vials, and containers.
Drug Delivery Systems: Inhalers and auto-injectors.
Advantages and Challenges of Medical Injection Molding
Medical molding offers significant benefits but also presents challenges.
Advantages of Medical Injection Molding
- High Precision and Repeatability: Medical injection moulding achieves micron-level accuracy, critical for devices requiring exact fit and function. Consistency reduces variability across batches.
- Cost-Efficiency in Volume: High-volume runs lower per-unit costs, making moulding medical components economical for disposable devices like syringes.
- Design Flexibility: Complex geometries and thin walls are feasible, enabling innovative designs in medical device injection molding.
- Material Versatility: A range of FDA-approved materials supports diverse applications, enhancing safety and performance in medical molding.
- Scalability: Rapid prototyping and high-throughput production accelerate time-to-market, crucial for healthcare innovation.
Challenges of Medical Injection Molding
- High Tooling Costs: Molds for medical molding can cost tens of thousands, posing barriers for low-volume projects.
- Regulatory Compliance: ISO 13485 and FDA standards require extensive validation, increasing development time and costs.
- Cleanroom Demands: Operating in ISO Class 7 or 8 environments, strict environmental controls and cleanroom requirements increase operational complexity.
Zhongde’s Professional Medical Molding Solutions
Medical molding is blending precision with innovation to produce high-quality medical devices. Zhongde offers medical device injection molding services based on advanced molding technologies and high-quality assurance. Partner with Zhongde for tailored molding solutions.
