Glass filled nylon injection molding is a specialized manufacturing process that combines nylon, a versatile polyamide thermoplastic, with reinforcing glass fibers to produce parts that are significantly stronger, stiffer, and more dimensionally stable than unfilled nylon components. For high-performance parts, our nylon molding solutions ensure excellent quality and precision. In this article, we will explore the properties, advantages and process of glass filed nylon injection molding.
What is Glass Filled Nylon?

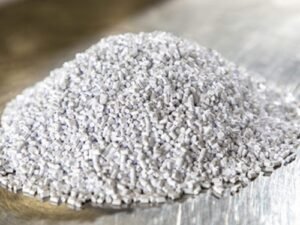

Glass filled nylon refers to nylon resin that has been compounded with discrete glass fibers, commonly chopped strands, to reinforce the polymer matrix. This reinforcement markedly increases strength and stiffness while reducing the material’s tendency to deform under load or heat. For customized parts, customized injection molding services provide tailored production to meet diverse application needs.
Common nylon base resins used include PA6 (polyamide 6), PA66 (polyamide 66), and PA12, each with various grades being glass-filled mostly in the range of 30% glass fiber content, although formulations may range from about 13% to 50% depending on property requirements.
Properties of Glass-Filled Nylon Materials
Injection molded glass filled nylon exhibits superior mechanical performance compared to unfilled nylon. Here is a comparison table of 30% Nylon 6, Nylon 6/6, and Nylon 12.
| Property | Nylon 6 (30% GF) | Nylon 6/6 (30% GF) | Nylon 12 (30% GF) |
|---|---|---|---|
| Tensile Strength (MPa) | ~170 | ~170–180 | ~140–150 |
| Flexural Strength (MPa) | ~250 | ~260–280 | ~200–220 |
| Heat Deflection Temp (°C) | ~220 | ~235–240 | ~180–190 |
| Elongation at Break (%) | ~3–5 | ~3–5 | ~5–10 |
| Moisture Absorption (%) | ~1.5–2.0 | ~1.2–1.8 | ~0.8–1.2 |
| Density (g/cm³) | ~1.35 | ~1.38 | ~1.25 |
Advantages and Disadvantages of Glass-Filled Nylon Injection Molding
Advantages of Glass-Filled Nylon Injection Molding
- Increase Strength and Rigidity: Glass fibers boost tensile strength, outperforming plastics like ABS for load-bearing parts.
- Enhance Thermal Stability: Withstands 100–150°C continuous use, with heat deflection up to 240°C.
- Enhanced Wear and Chemical Resistance: Resists wear and chemicals like oils, extending part life in harsh conditions.
- Dimensional Stability: Low thermal expansion reduces warping during temperature changes.
- Electrical Insulation: Non-conductive, ideal for electrical connectors and supports.
- Cost-Effective: Lighter and cheaper than metals, cutting costs in automotive and aerospace.

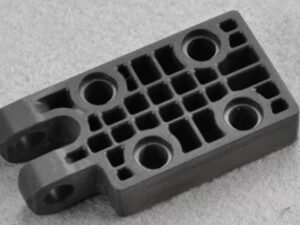

Glass Filled Nylon Injection Molding Service
Disadvantages of Glass-Filled Nylon Injection Molding
- Increased Brittleness: High glass content increases cracking risk under impact.
- Abrasiveness: Glass fibers wear molds, requiring costly hardened steel tools.
- Higher Material Cost: More expensive than unfilled nylon, raising production costs.
- Moisture Absorption: Absorbs up to 2.5% moisture, affecting dimensions if not dried.
- Warping Risk: Anisotropic fiber orientation can cause warping or weak weld lines.
Injection Molding Process of Glass Filled Nylon
Granules of nylon compounded with glass fibers are carefully dried to moisture levels below 0.2%. The dried pellets are then melted and injected at appropriate temperatures and pressures into a precision mold cavity. After cooling, the part solidifies and is ejected.
Beyond injection molding, glass filled nylon can also be machined using CNC machining methods to achieve high-precision tolerances or be 3D printed via selective laser sintering (SLS) and multi-jet fusion (MJF) techniques. These additive processes allow for complex geometries and rapid prototyping while retaining mechanical strength and heat resistance benefits. Learn more about machining nylon.
Applications of Glass Filled Nylon Injection Molding
- Automotive components: gears, bushings, connectors, bearing cages
- Industrial fasteners and mechanical parts
- Electrical enclosures and housings
- Consumer goods structural parts
- High-wear surfaces in machinery and equipment
Design Considerations for Glass Filled Nylon Injection Molding
When designing parts, maintaining uniform wall thickness is critical to avoid warping or sink marks. Designers should account for fiber orientation effects, which influence mechanical anisotropy and shrinkage. Proper draft angles and radii reduce stress concentration and aid in part ejection. Mold venting and cooling channel design contribute to part quality and cycle efficiency.
Processing Tips for Glass-Filled Nylon
Successful glass-filled nylon injection molding requires meticulous attention to processing parameters:
- Material Drying: Dry resin at 100–120°C for 2–3 hours to reduce moisture content below 0.2%, preventing voids, splay, or weak parts.
- Temperature Control: Use a reverse heat profile (hotter rear zone, cooler front) to maintain fiber length and optimize mechanical properties. Typical glass-filled nylon injection molding temperatures range from 250–300°C for the barrel and 100–120°C for the mold.
- Injection Pressure: Adjust for the material’s higher viscosity, ensuring complete mold fill without excessive shear that could degrade glass fibers.
- Mold Material: Employ hardened steel or bimetallic screws and barrels to withstand the abrasiveness of glass fibers, extending tool life.
- Cooling Rate: Cool parts slowly, ideally in hot water post-ejection, to minimize residual stresses and warping caused by anisotropic shrinkage.
- Additives: Use compatibilizers to enhance fiber-resin bonding, reducing surface defects like stray fibers or bloom during molding.
